Diesel forklifts deliver robust power and high torque, ensuring strong acceleration from a standstill under heavy loads and smooth, stable lifting without vibration. Unconstrained by charging requirements, they can operate continuously after refueling, making them suitable for harsh environments such as outdoor construction sites, steel markets, and aggregate yards. Equipped with off-road tires for superior traction, they navigate slopes and rough terrain with stability; their exceptional load-bearing capacity ensures efficient, hassle-free handling and stacking of heavy goods, making them the ideal choice for heavy-duty material handling.
High-quality raw materials
Simple & user-friendly control
Easy service, lower cost
Stable power for daily work

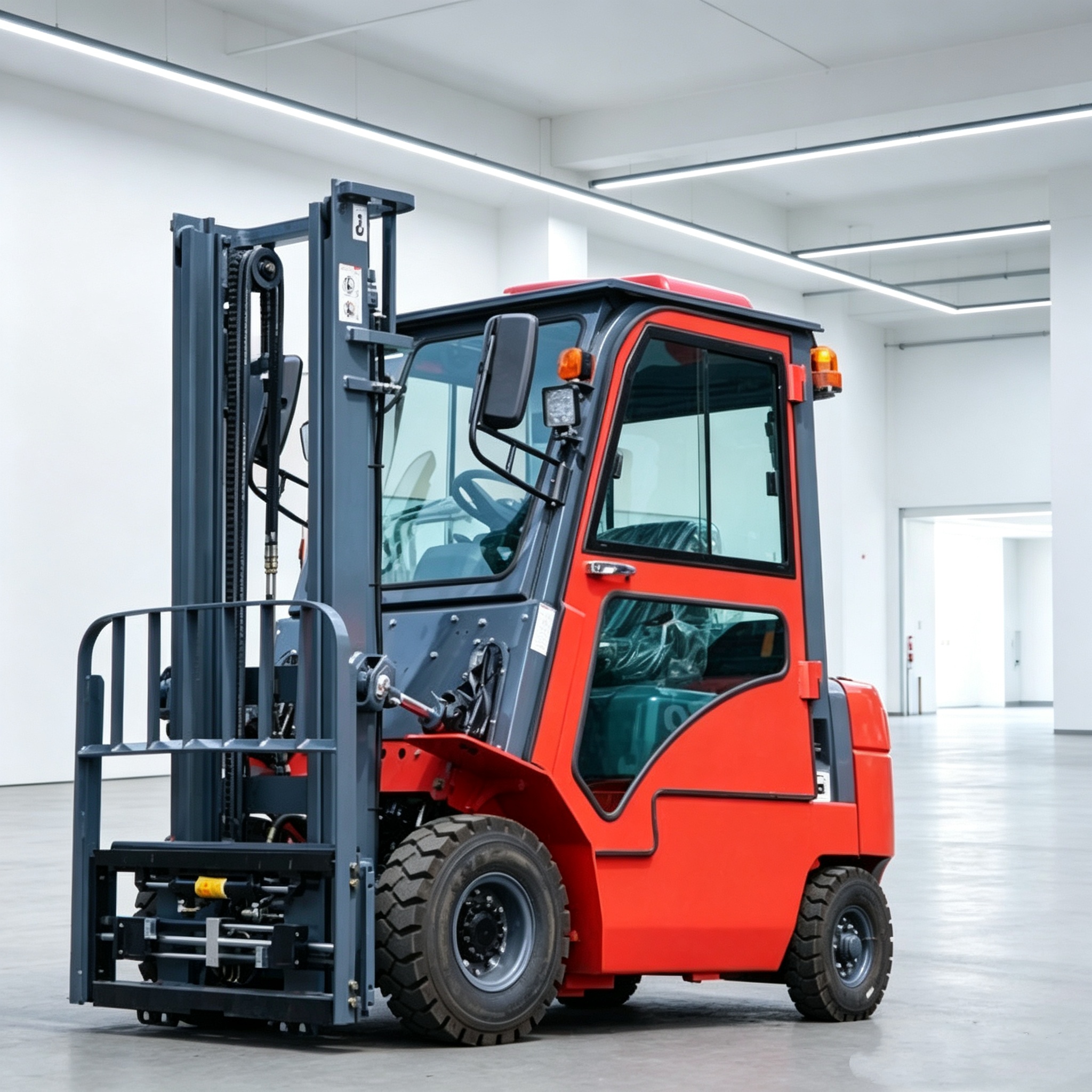

High‑torque diesel engine delivers stable and powerful output. It keeps smooth lifting and driving even under full heavy loads, ideal for steel, stone and bulk cargo handling in yards and construction sites.

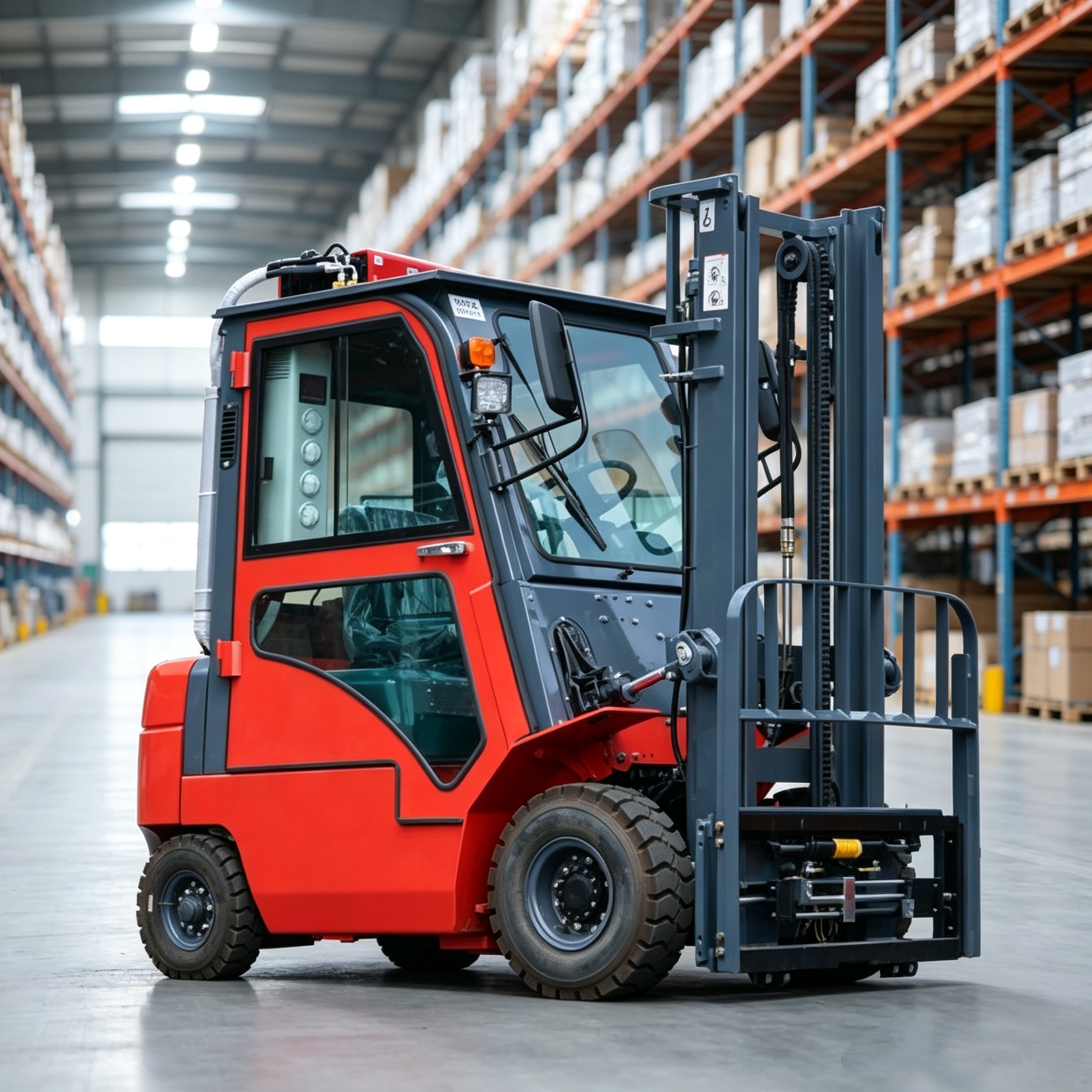

Refueling takes only a few minutes to regain full working capacity. No long‑hour charging waiting, supporting round‑the‑clock continuous shifts for high‑intensity logistics work.

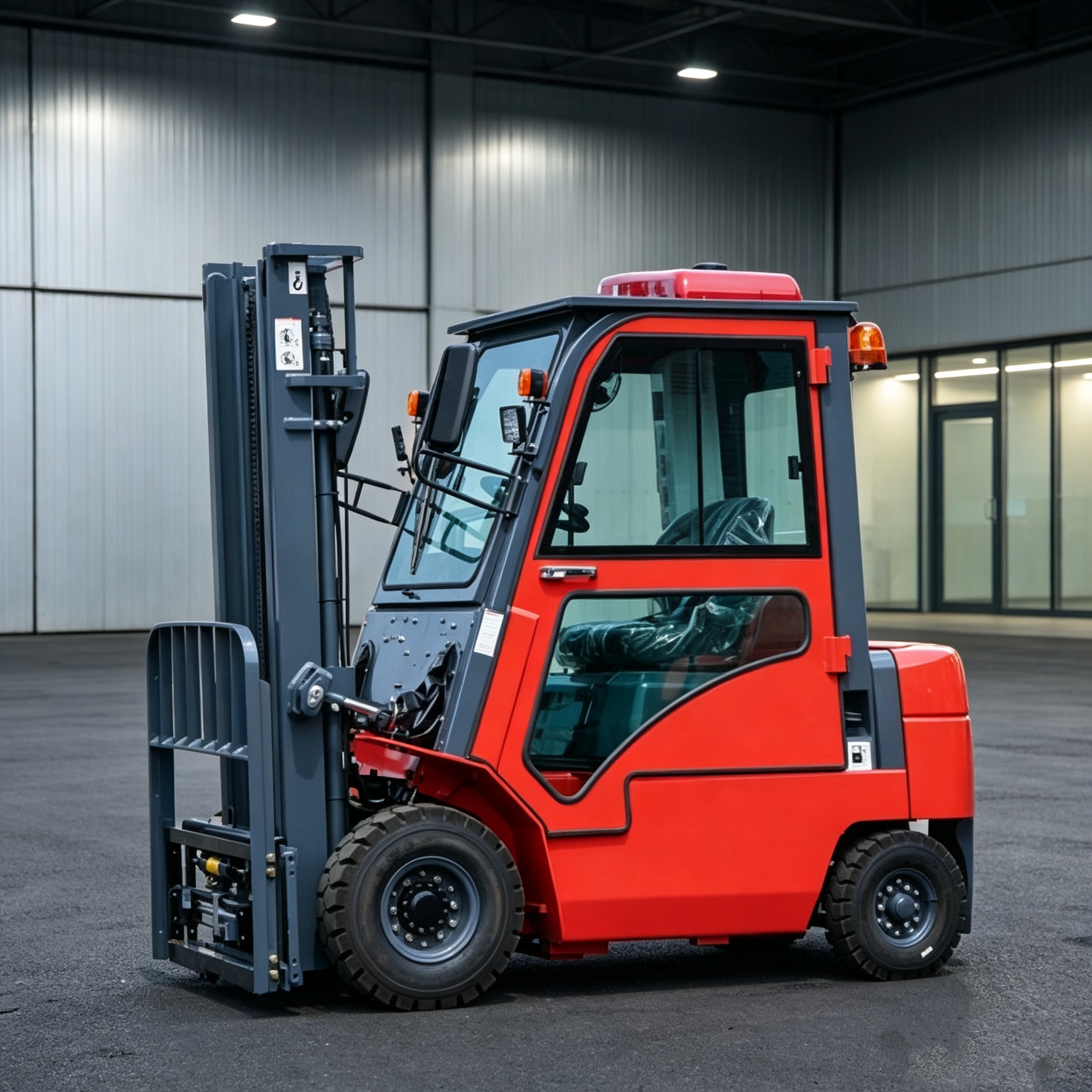

Thick anti‑skid tires and high ground clearance make it perform well on rough ground, slopes and uneven yards. It can work normally in outdoor open‑air environments without site restrictions.
|
Rated load |
1500kg |
Full length with forks |
3175mm |
Load center |
500mm |
Full length without forks |
2255mm |
|
Lifting height |
3000mm |
Full width |
1070mm |
Free lifting height |
100mm |
Overall mast lifting height |
4030mm |
|
Fork size |
920×100×35mm |
Mast closed height |
1995mm |
Mast tilt angle front and back |
6/12Deg. |
Front tire |
6.501010PR |
|
Minimum turning radius |
1955mm |
Rear tire |
5.0088PR |
Ground clearance |
110mm |
Wheelbase |
1410mm |
|
Head guard height from ground |
2040mm |
Track |
890/920mm |
Front overhang |
425mm |
Total weight |
2660kg |
|
Maximum travel speed full load |
13.5km/h |
Battery |
12/80V/Ah |
Maximum lifting speed full load |
590mm/s |
Engine model |
Xinchai 4D27G31 |
|
Maximum traction full load |
12.3KN |
Engine rated power |
32kw/r.p.m |
Maximum climbing angle |
20% |
Working pressure |
18.5Mpa |
