Newer excavator models feature automatic slope leveling, eliminating the need for manual layout and significantly boosting grading efficiency. Smooth hydraulic multi-function operation enables faster loading speeds, effectively shortening project timelines. Designed to be dustproof and waterproof, these machines operate reliably in rainy weather or dusty environments, making them a highly cost-effective choice for both personal project use and equipment rental businesses.
High-quality raw materials
Simple & user-friendly control
Easy service, lower cost
Stable power for daily work

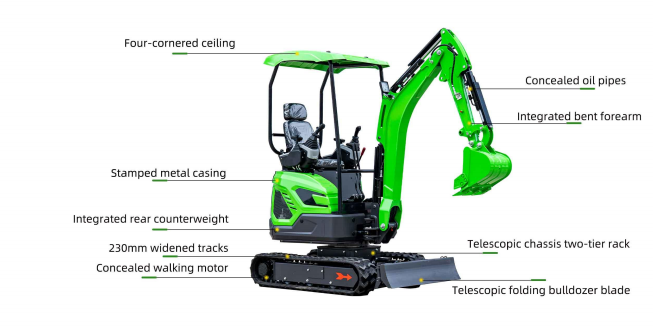

Integrated four-post sun/rain canopy providing all-around protection, ensuring greater comfort and safety during prolonged outdoor operations.

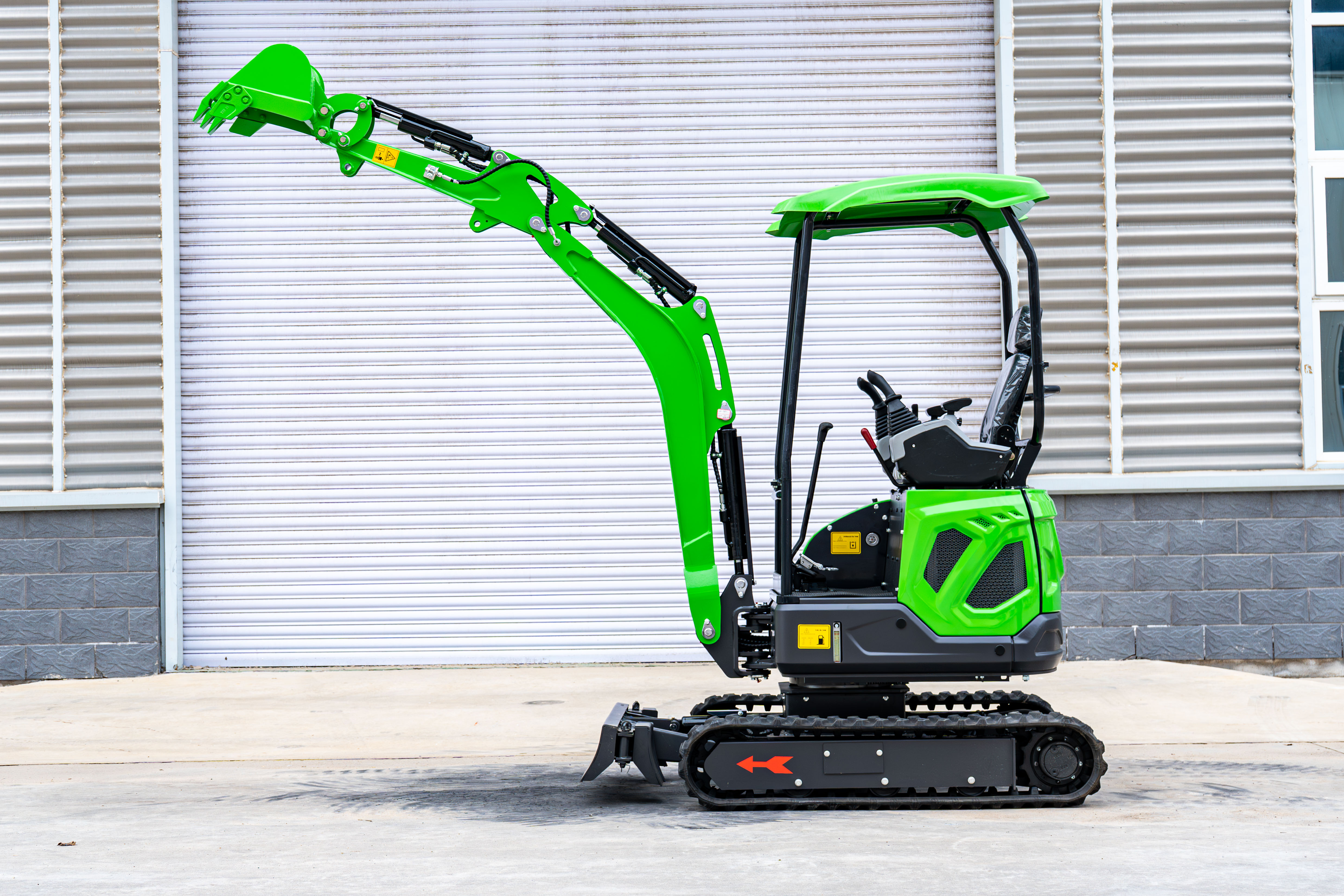

Fully internal hose routing prevents snagging or damage during operation, reduces the risk of oil leaks, and extends the service life of hydraulic components.

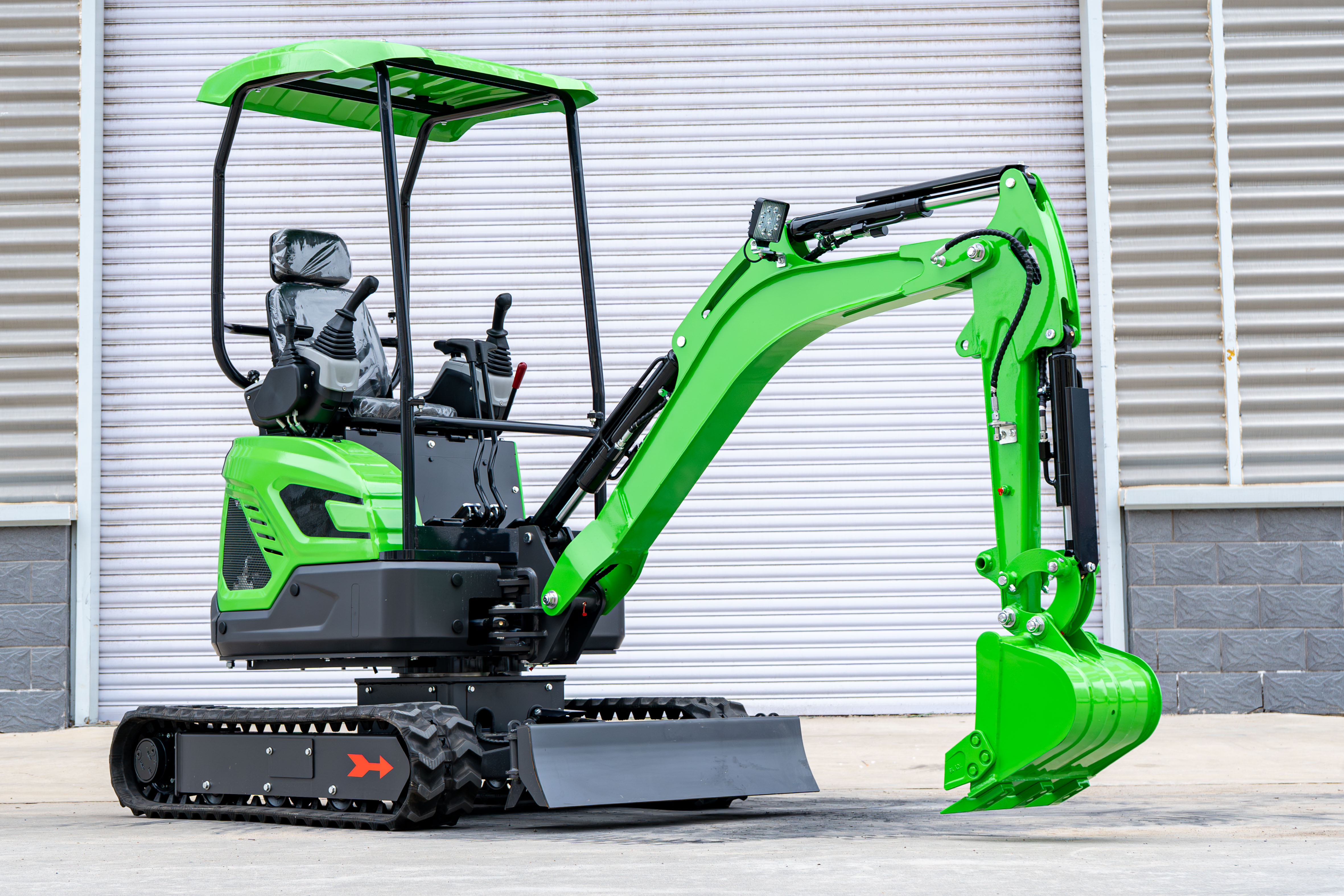

One-piece bent-design dipper arm structure offering superior structural strength and stable power output for deep digging and breaking operations.
The narrow chassis is perfectly suited for excavating ecological slope trenches, trimming slope protections, and laying drainage channels, thereby supporting urban ecological infrastructure projects.
Rubber tracks prevent damage to paved surfaces, enabling agile operation within commercial plaza green spaces and rapid execution of tasks such as digging planting holes and backfilling soil.
Its compact body allows it to park at the edge of the roadway while excavating neat, deep, and long utility trenches—ideal for laying water and power lines in industrial parks.
|
Engine |
Laidong LD385 |
|
Bucket Capacity |
0.04 m3 |
|
Operating weight |
2ton |
|
Bucket Width |
415 mm |
|
Transport Length |
2550 mm |
|
Ground Clearance |
380 mm |
|
Chassis Length |
1800 mm |
|
Power |
39hp |
|
Track width |
230mm |
|
Digging height |
3080mm |
|
wheelbase |
920mm |
|
Unloading height |
2000mm |
|
Track length |
1500 mm |
|
Digging depth |
2000mm |
|
Overall height |
2150mm |
|
Chassis width |
1150mm |
|
Turning radius |
840mm |
|
Overall dimensions |
2250*1150*2200mm |
|
Bulldozer blade lifting height |
325mm |
|
Ground excavation radius |
3227mm |
Everything you need to know before requesting a quotation or cooperation
We support brand customization, functional development, and appearance design. Specific requirements must be provided and a confidentiality agreement signed.
You can contact our sales team or call the 24-hour hotline. We will respond within 2 hours and provide a solution.
·Independent import and export rights
·ISO9001 certified manufacturing
·CE certification for target markets
·EPA compliance (selected models)
·Meets international market standards
Sea, air, and land transportation are all available. We offer door-to-door services such as DDP/DDU.
We provide a tracking number and an online tracking platform to update the location of your goods and the estimated arrival time in real time.
·High efficiency for continuous operation
·Low fuel consumption
·Reinforced components for durability
·Suitable for 24-hour working conditions
·Strong adaptability across job sites
·360°skid-steer turning (no turning space required)
·Compact size for narrow or indoor spaces
·Quick attachment change (3–5 minutes)
·Multi-function use: loading, sweeping, crushing, grabbing
·Higher flexibility than conventional loaders
·Standard bucket — earthmoving and loading
·Breaker — rock and concrete demolition
·Auger — drilling and piling work
·Grab / grapple — timber and material handling
·Extended boom — deep trenching and high-reach work
·ISO quick-coupler for fast attachment changes
